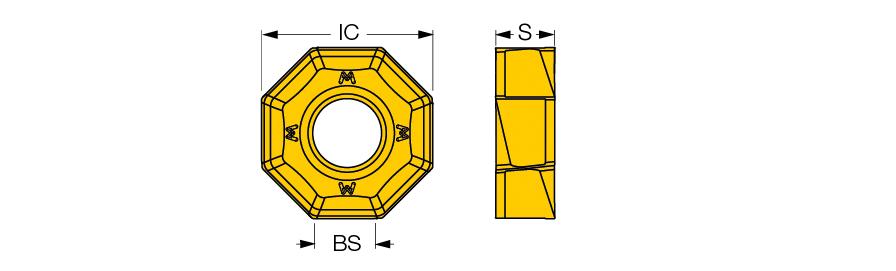

ONHU 0706AN-R-W IC810
Milling Insert; ONHU 0706AN-R-W IC810 IC810 × 0.256″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Application | | Facing | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.197″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.74″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.256″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.268″ | Number of Cutting Edges | 8 |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
Product Features
| Family Description | Double-sided octagonal wiper inserts with 8 right-hand Cuttig edges. | Country of Origin | Israel |
| Remarks | Note : this insert is not intended to be mounted on a cutter carrying inserts ONHU 070600-PL-R |
Shipping Info
Package Weight
0.050
