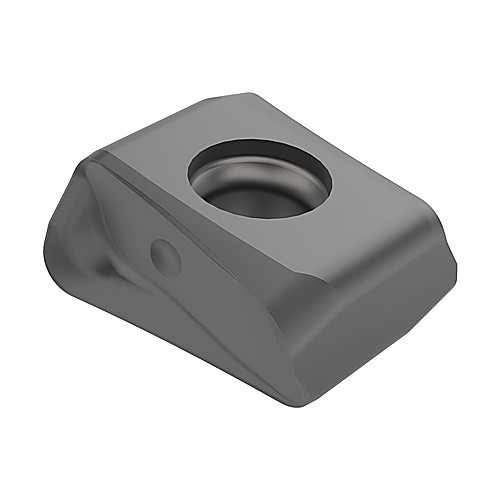

LOEX080408TR-MD08 GRADE MK1500 MILLING INSERT
Milling Insert; 9.29 mm Length × 4.4 mm Width × 6.6 mm Thickness ; MK1500 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 9.29 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.8 mm | Insert Style | LOEX |
| Depth of Cut Maximum (APMX) | 0.3268″ | Insert Size | 80408 |
| Insert Width (W1) | 4.4 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1732″ | Chip Breaker Type | MD08 |
| Insert Thickness (S) | 6.6 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 29.5 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
