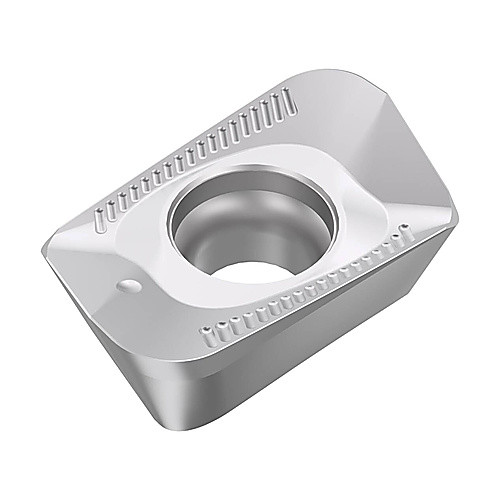

XOMX120420TR-ME08 GRADE MS2050
Milling Insert; XOMX120420TR-ME08 MS2050 MS2050 × 8.18 mm Width × 5.05 mm Thickness ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MS2050 |
| Cutting Edge Length (L) | 0.4567″ | Shape | Parallelogram |
| Corner Radius (RE) | 2 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.4567″ | Insert Size | 120420 |
| Insert Width (W1) | 8.18 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3228″ | Chip Breaker Type | ME08 |
| Insert Thickness (S) | 5.05 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiAlN | NbN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
