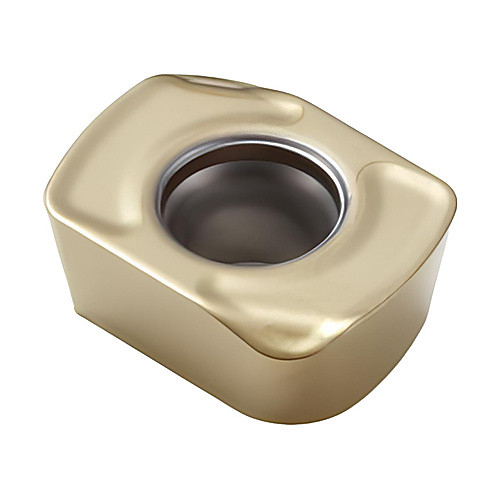

LPKT05T210TR-M05 GRADE F40M MILLING INSERT
Milling Insert; 6.8 mm Length × 5.07 mm Width × 2.54 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 6.8 mm | Shape | Rectangle |
| Corner Radius (RE) | 1 mm | Insert Style | LPKT |
| Depth of Cut Maximum (APMX) | 0.2677″ | Insert Size | 05T210 |
| Insert Width (W1) | 5.07 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1996″ | Chip Breaker Type | T |
| Insert Thickness (S) | 2.54 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
