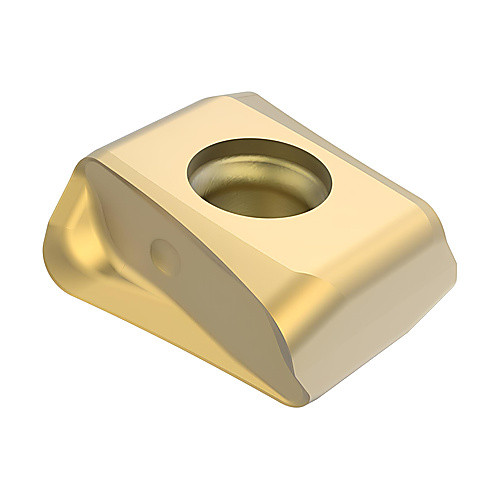

LOEX080416TR-M08 GRADE F40M
Milling Insert; 9.29 mm Length × 4.4 mm Width × 6.45 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 9.29 mm | Shape | Rectangle |
| Corner Radius (RE) | 1.6 mm | Insert Style | LOEX |
| Depth of Cut Maximum (APMX) | 0.3268″ | Insert Size | 80416 |
| Insert Width (W1) | 4.4 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1732″ | Chip Breaker Type | M08 |
| Insert Thickness (S) | 6.45 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 34 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
