XNEX040308R-M06 GRADE MM4500 MILLING INSERT
Milling Insert; 4 mm Length × 3.31 mm Thickness ; MM4500 ; Carbide
Additional Tariff Surcharge of 8 %

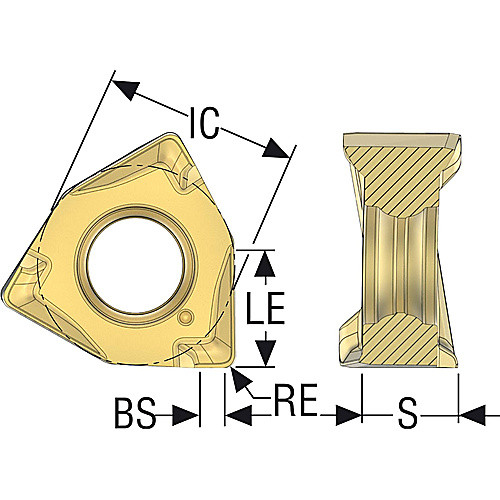

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MM4500 |
| Cutting Edge Length (L) | 4 mm | Shape | Trigon |
| Corner Radius (RE) | 0.8 mm | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.1575″ | Insert Size | 40308 |
| Insert Width (W1) | 0.2638″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 6.7 mm | Chip Breaker Type | M06 |
| Insert Thickness (S) | 3.31 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 6 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
