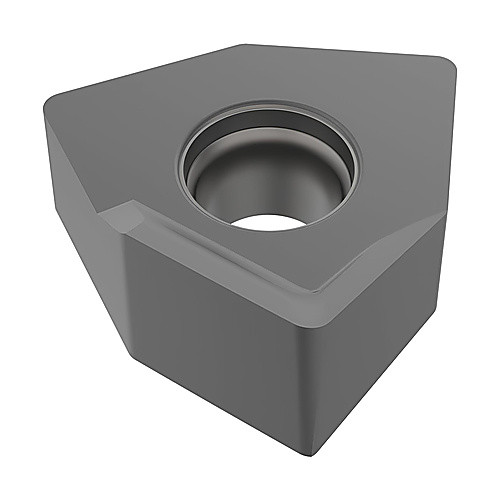

XNEX080608ZZR-M11 GRADE MK1500 MILLING INSERT
Milling Insert; 7.5 mm Length × 6.45 mm Thickness ; MK1500 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |
| Cutting Edge Length (L) | 7.5 mm | Shape | Trigon |
| Corner Radius (RE) | 0.8 mm | Insert Style | XNEX |
| Depth of Cut Maximum (APMX) | 0.2953″ | Insert Size | 80608 |
| Insert Width (W1) | 0.4913″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.48 mm | Chip Breaker Type | M11 |
| Insert Thickness (S) | 6.45 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
