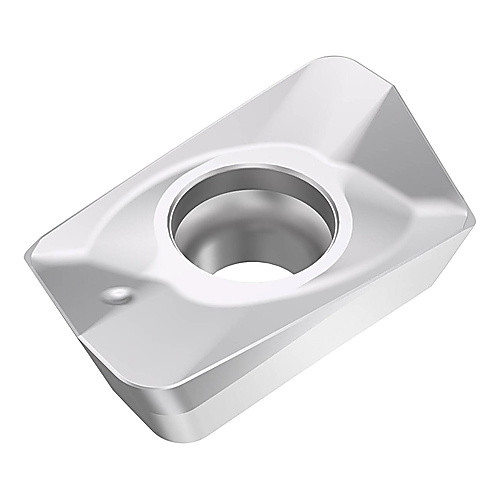

XOMX060216R-M05 GRADE MS2050 MILLING INSERT
Milling Insert; 6 mm Length × 4.06 mm Width × 2.45 mm Thickness ; MS2050 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MS2050 |
| Cutting Edge Length (L) | 6 mm | Shape | Parallelogram |
| Corner Radius (RE) | 1.6 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.2165″ | Insert Size | 60216 |
| Insert Width (W1) | 4.06 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.1614″ | Chip Breaker Type | M05 |
| Insert Thickness (S) | 2.45 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiAlN | NbN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
