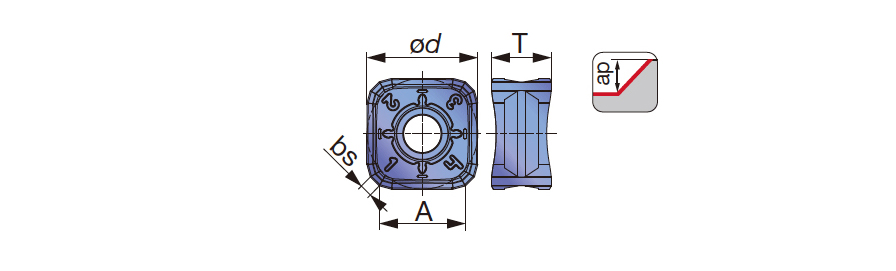

SNGU1307C14ANEN-MJ AH3135
Milling Insert; SNGU1307C14ANEN-MJ AH3135 × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | Steel|Stainless Steel|Hard Materials|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.276″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH3135 | Body Material | Carbide |
Product Features
| Family Description | Double-sided square insert with chamfered corner and pressed MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.029
