BCR D120-QT IC908

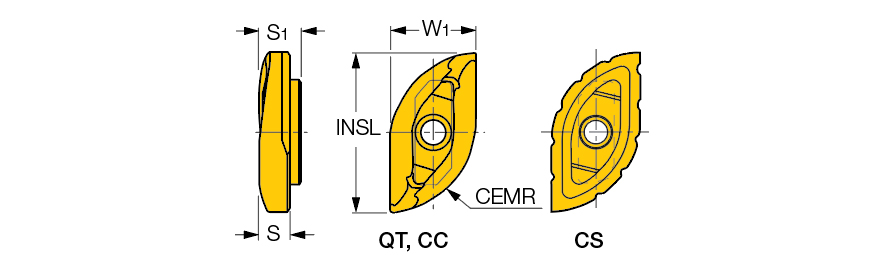

Milling Insert; 10.6 mm Length × 5.8 mm Width × 2.3 mm Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 10.6 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 10.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 6 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 5.8 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Thickness (S) | 2.3 mm | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
Product Features

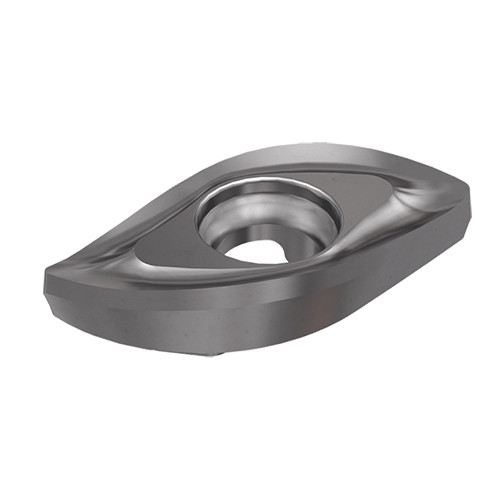

| Family Description | The DROPMILL insert has a straight cutting edge tangent to a round corner. It enables machining of a shoulder with a round corner. A protrusion on the bottom mounts in a mating slot in the pocket to maintain high edge location precision. | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
