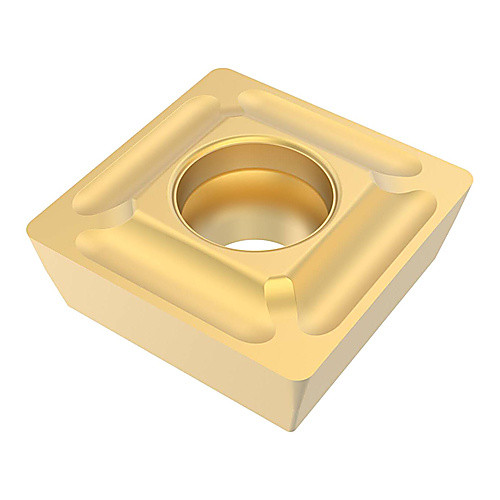

SPMX 060204-75 GRADE T25M DRILL INSERT
Milling Insert; 6.35 mm Length × 6.35 mm Width × 2.38 mm Thickness ; T25M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | T25M |
| Cutting Edge Length (L) | 6.35 mm | Shape | Square |
| Corner Radius (RE) | 0.4 mm | Insert Style | SPMX |
| Depth of Cut Maximum (APMX) | 1/4″ | Insert Size | 60204 |
| Insert Width (W1) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | 75 |
| Insert Thickness (S) | 2.38 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
