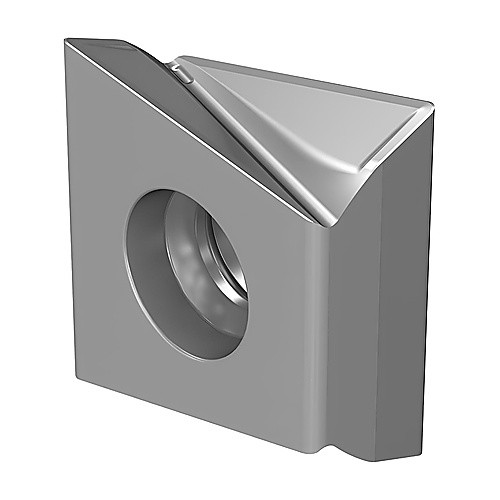

XNHQ170708TN4-M13 GRADE MK2050 MILLING INSERT
Milling Insert; 17 mm Length × 7.5 mm Width ; MK2050 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Grade | MK2050 |
| Cutting Edge Length (L) | 17 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.8 mm | Insert Style | XNHQ |
| Depth of Cut Maximum (APMX) | 0.6339″ | Insert Size | 170708 |
| Insert Width (W1) | 7.5 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.2953″ | Chip Breaker Type | Q |
| Insert Thickness (S) | 0.2953″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiSiN | TiAlN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.046
