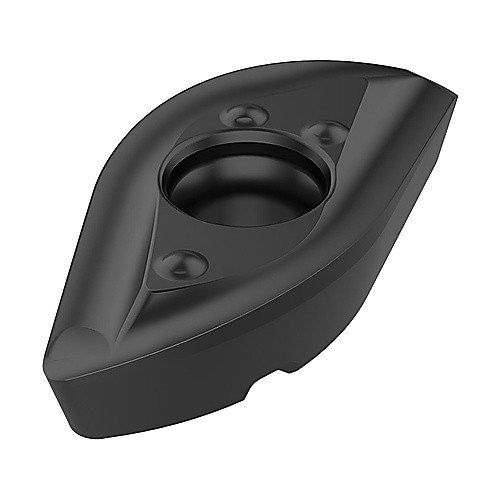

218.20-100ER-ME05 GRADE MS2050 MILLING INSERT
Milling Insert; 19.55 mm Length × 8.59 mm Width × 4.05 mm Thickness ; MS2050 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MS2050 |
| Cutting Edge Length (L) | 19.55 mm | Shape | Ball Nose |
| Corner Radius (RE) | 0.3937″ | Insert Size | 100ER |
| Depth of Cut Maximum (APMX) | 0.709″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 8.59 mm | Chip Breaker Type | ME05 |
| Inscribed Circle Diameter (IC) | 0.3382″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.05 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 3 Degrees | Number of Cutting Edges | 2 |
| Coating | | TiAlN | NbN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.011
