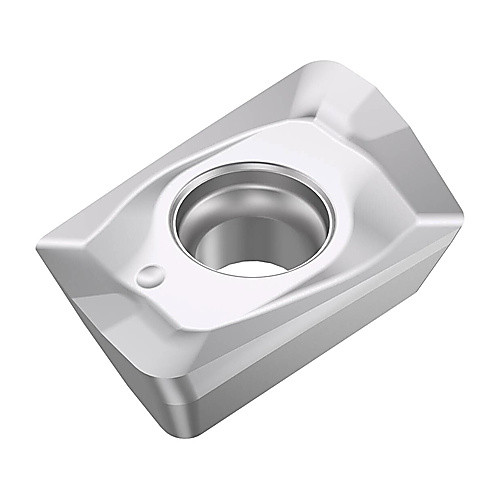

XOEX10T324R-M06 GRADE MS2050 MILLING INSERT
Milling Insert; XOEX10T324R-M06 MS2050 MS2050 × 6.87 mm Width × 3.8 mm Thickness ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MS2050 |
| Cutting Edge Length (L) | 0.3819″ | Shape | Parallelogram |
| Corner Radius (RE) | 2.4 mm | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.3819″ | Insert Size | 10T324 |
| Insert Width (W1) | 6.87 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.2717″ | Chip Breaker Type | M06 |
| Insert Thickness (S) | 3.8 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiAlN | NbN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
