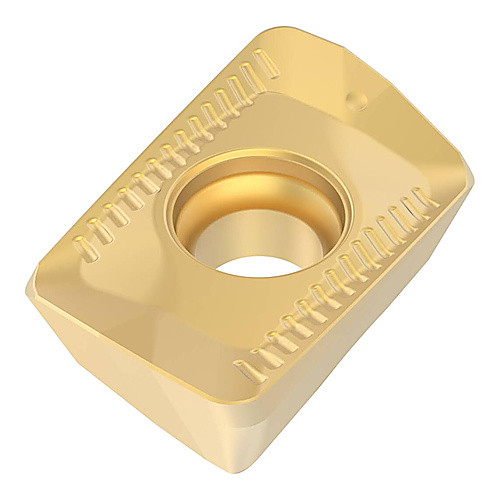

XOMX 090312TR-ME06 GRADE F40M - MILLING INSERT
Milling Insert; 10.75 mm Length × 6.35 mm Width × 3.52 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 10.75 mm | Shape | Parallelogram |
| Corner Radius (RE) | 1.2 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.3543″ | Insert Size | 90312 |
| Insert Width (W1) | 6.35 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | ME06 |
| Insert Thickness (S) | 3.52 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 23 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
