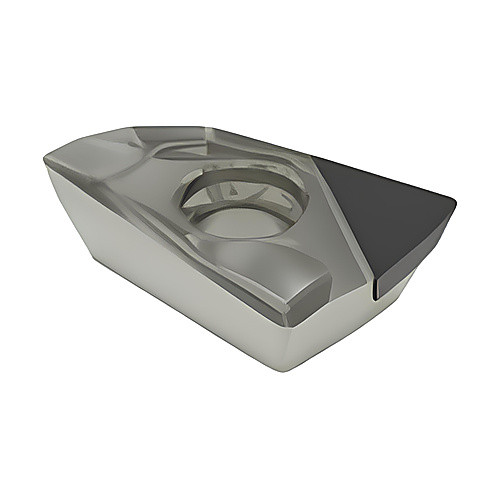

XOEX10T304F GRADE PCD05 MILLING INSERT
Milling Insert; 10 mm Length × 6.87 mm Width × 3.77 mm Thickness ; PCD05 ; PCD
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | PCD05 |
| Cutting Edge Length (L) | 10 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.4 mm | Insert Style | XOEX |
| Depth of Cut Maximum (APMX) | 0.1575″ | Insert Size | 10T304 |
| Insert Width (W1) | 6.87 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.2705″ | Chip Breaker Type | None |
| Insert Thickness (S) | 3.77 mm | Cutting Edge Material | PCD |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.004
