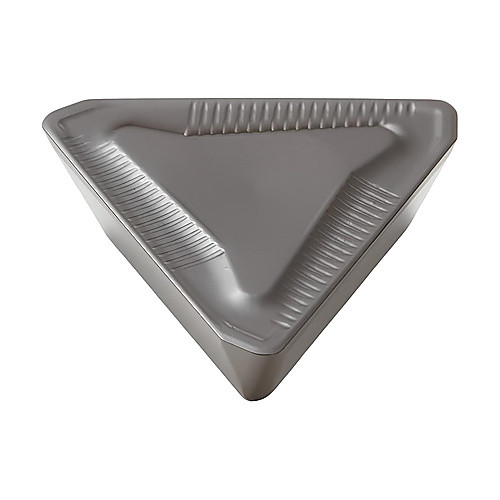

TEKR 2205PETR-ME14 GRADE MP2500 MILLING INSERT
Milling Insert; 15.9 mm Length × 5.56 mm Thickness ; MP2500 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Grade | MP2500 |
| Cutting Edge Length (L) | 15.9 mm | Shape | Triangle |
| Corner Radius (RE) | 0.0472″ | Insert Style | TEKR |
| Depth of Cut Maximum (APMX) | 0.626″ | Insert Size | 2205 |
| Insert Width (W1) | 0.626″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | R |
| Insert Thickness (S) | 5.56 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 20 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiCN | Al2O3 | | Number of Cutting Edges | 3 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.026
