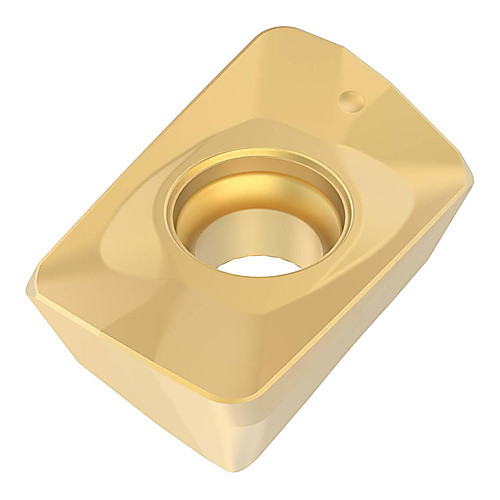

XOMX 090308TR-M08 GRADE MP3000 - MILLING INSERT
Milling Insert; 10.75 mm Length × 6.35 mm Width × 3.65 mm Thickness ; MP3000 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Grade | MP3000 |
| Cutting Edge Length (L) | 10.75 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.8 mm | Insert Style | XOMX |
| Depth of Cut Maximum (APMX) | 0.3543″ | Insert Size | 90308 |
| Insert Width (W1) | 6.35 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | M08 |
| Insert Thickness (S) | 3.65 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 10 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
