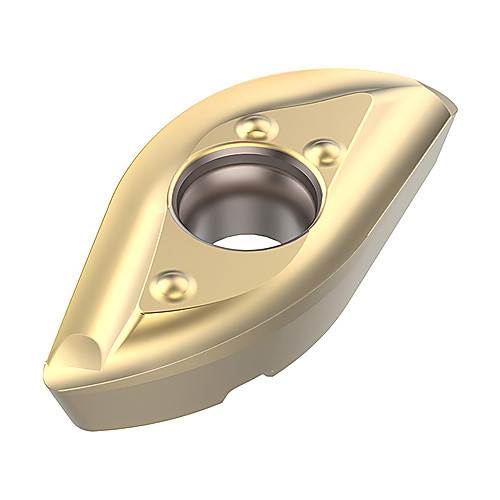

218.20-0.375ER-ME05 GRADE MS2050 MILLING INSERT
Milling Insert; 18.62 mm Length × 8.19 mm Width × 3.85 mm Thickness ; MS2050 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | | TiAlN | NbN | |
| Cutting Edge Length (L) | 18.62 mm | Grade | MS2050 |
| Corner Radius (RE) | 3/8″ | Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 0.669″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 8.19 mm | Chip Breaker Type | ME05 |
| Inscribed Circle Diameter (IC) | 0.3224″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.85 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 11 Degrees | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
