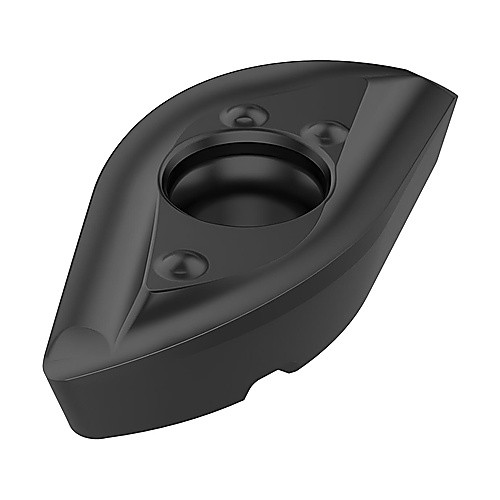

218.20-080ER-ME04 GRADE MS2050 MILLING INSERT
Milling Insert; 15.64 mm Length × 6.88 mm Width × 3.21 mm Thickness ; MS2050 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | MS2050 |
| Cutting Edge Length (L) | 15.64 mm | Shape | Ball Nose |
| Corner Radius (RE) | 0.315″ | Insert Size | 080ER |
| Depth of Cut Maximum (APMX) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 6.88 mm | Chip Breaker Type | ME04 |
| Inscribed Circle Diameter (IC) | 0.2709″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.21 mm | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 5 Degrees | Number of Cutting Edges | 2 |
| Coating | | TiAlN | NbN | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
