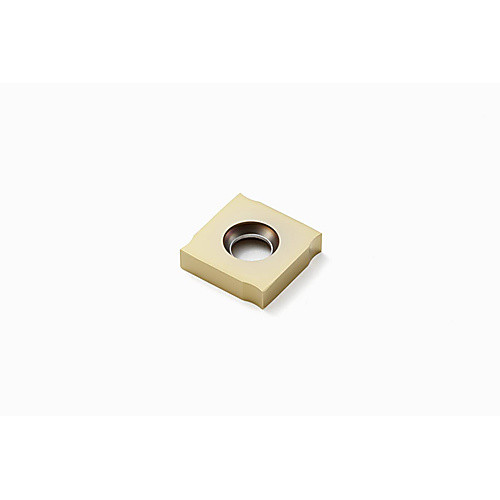

335.19-1204-M08 GRADE F40M MILLING INSERT
Milling Insert; 4 mm Length × 4 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Shape | Square |
| Cutting Edge Length (L) | 4 mm | Insert Size | 1204 |
| Insert Width (W1) | 1/2″ | Corner Chamfer Width (CHW) | 0.15 mm |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4 mm | Chip Breaker Type | M08 |
| Insert Included Angle (EPSR) | 15 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiN | TiAlN | | Tool Type | Single sided Inserts |
| Grade | F40M | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.015
