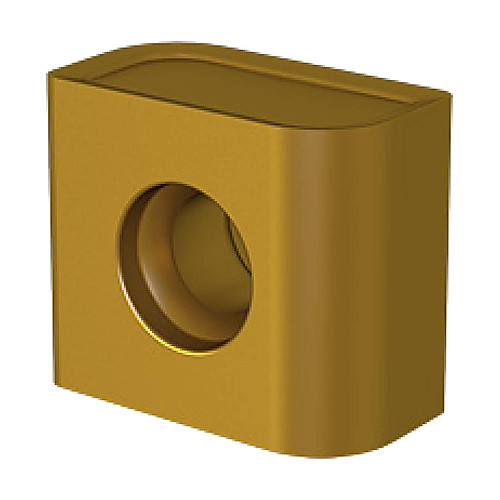

LNHQ170740TN4-M13 GRADE F40M MILLING INSERT
Milling Insert; 17 mm Length × 7.5 mm Width × 14.05 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 17 mm | Shape | Rectangle |
| Corner Radius (RE) | 4 mm | Insert Style | LNHQ |
| Depth of Cut Maximum (APMX) | 0.6339″ | Insert Size | 170740 |
| Insert Width (W1) | 7.5 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.2953″ | Chip Breaker Type | Q |
| Insert Thickness (S) | 14.05 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.042
