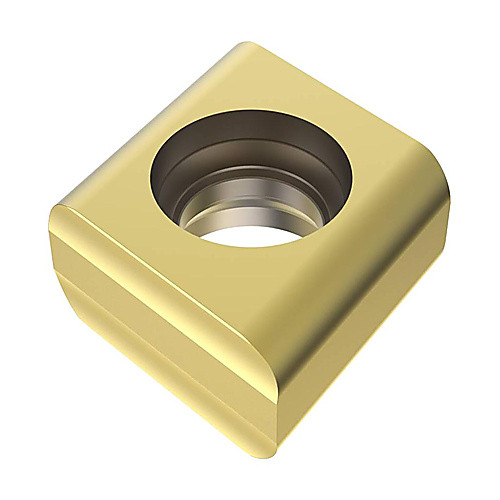

335.18-1005T-M10 GRADE F40M MILLING INSERT
Milling Insert; 10 mm Length × 5.4 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Shape | Parallelogram |
| Cutting Edge Length (L) | 10 mm | Insert Size | 1005 |
| Corner Radius (RE) | 0 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Insert Width (W1) | 0.3937″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 10 mm | Chip Breaker Type | M10 |
| Insert Thickness (S) | 5.4 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 15 Degrees | Tool Type | Double sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 4 |
| Grade | F40M |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.013
