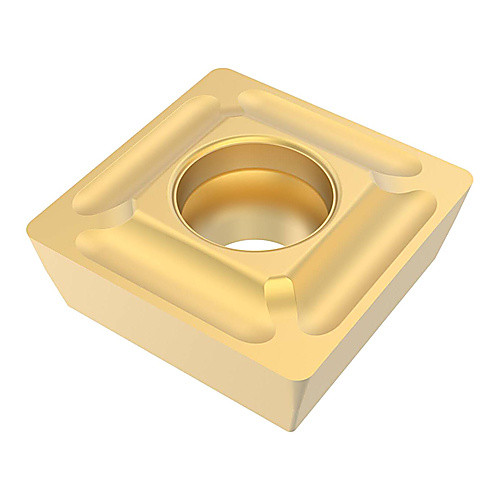

SPMX 070304-75 GRADE F40M DRILL INSERT
Milling Insert; 7.94 mm Length × 7.94 mm Width × 3.18 mm Thickness ; F40M ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | F40M |
| Cutting Edge Length (L) | 7.94 mm | Shape | Square |
| Corner Radius (RE) | 0.4 mm | Insert Style | SPMX |
| Depth of Cut Maximum (APMX) | 0.3126″ | Insert Size | 70304 |
| Insert Width (W1) | 7.94 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 7.94 mm | Chip Breaker Type | 75 |
| Insert Thickness (S) | 3.18 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | | TiN | TiAlN | | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
