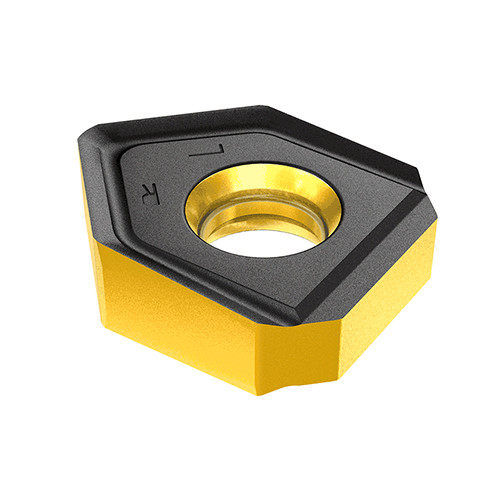

S845 SNHU 1806AN-N-W IC810
Milling Insert; S845 SNHU 1806AN-N-W 810 IC810 × 0.276″ Thickness ; Carbide ; AlTiCrN+TiN

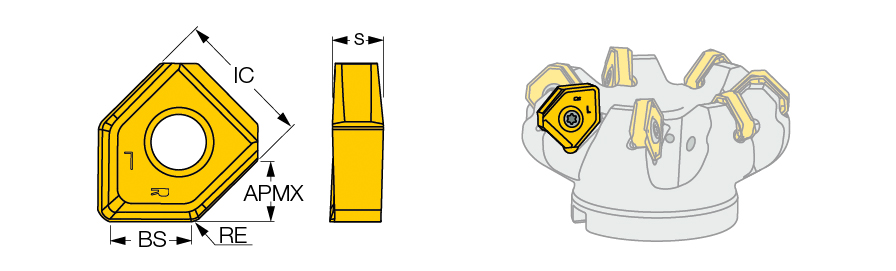

| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Facing | | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.74″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.276″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.394″ | Number of Cutting Edges | 4 |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
| Shape | Square |
Product Features
| Family Description | Wiper insert with 2 R.H. and 2 L.H. cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.063
