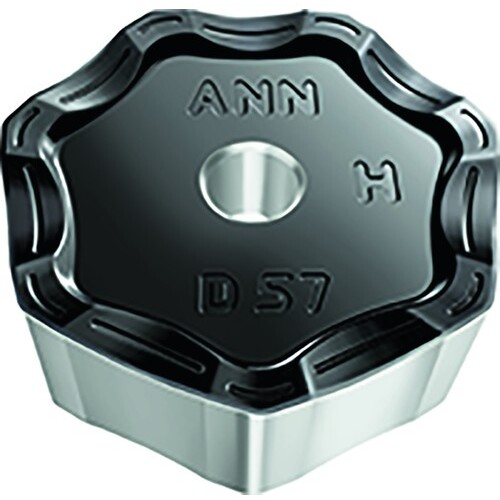

XNHF0906ANN-D57 Grade WKP25S
Milling Insert; 9 mm Length × 9 mm Width × 6.35 mm Thickness ; WKP25S ; Carbide ; | TiCN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 9 mm | Insert Style | XNHF |
| Corner Radius (RE) | 0.8 mm | Insert Size | 906 |
| Depth of Cut Maximum (APMX) | 0.354″ | Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 9 mm | Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 19.05 mm | Series/List # | XNHF-WKP25S |
| Insert Thickness (S) | 6.35 mm | Hole Diameter | 2.8 mm |
| Insert Included Angle (EPSR) | 128.57 Degrees | Cutting Edge Material | Carbide |
| Coating | | TiCN | Al2O3 | | Tool Type | Double sided Inserts |
| Grade | WKP25S | Number of Cutting Edges | 7 |
Product Features
| Family Description | XNHF0906ANN-D57 WKP25S | Country of Origin | Germany |
Shipping Info
Package Weight
0.575
