OFEN 070405TN-D18 GRADE MK1500 INSERT
Milling Insert; 17.96 mm Length × 4.76 mm Thickness ; MK1500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | MK1500 |

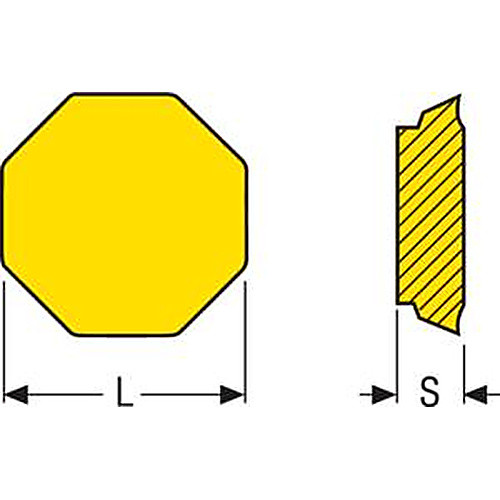

| Cutting Edge Length (L) | 17.96 mm | Shape | Octagon |
| Corner Radius (RE) | 0.5 mm | Insert Style | OFEN |
| Depth of Cut Maximum (APMX) | 0.2756″ | Insert Size | 70405 |
| Insert Width (W1) | 0.7071″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 17.96 mm | Chip Breaker Type | N |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 25 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 8 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.033
