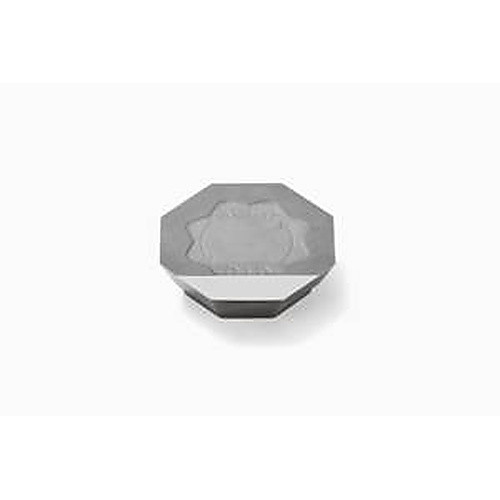

OFEN070405FN-M09
Milling Insert; OFEN 070405FN-M09 PCD20 PCD20 × 0.707″ Width × 0.187″ Thickness ; PCD ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | PCD20 |
| Cutting Edge Length (L) | 0.7067″ | Shape | Octagon |
| Corner Radius (RE) | 0.02″ | Insert Style | OFEN |
| Depth of Cut Maximum (APMX) | 0.1969″ | Insert Size | 70405 |
| Insert Width (W1) | 0.707″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.7067″ | Chip Breaker Type | M09 |
| Insert Thickness (S) | 0.187″ | Cutting Edge Material | PCD |
| Insert Included Angle (EPSR) | 135 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.035
