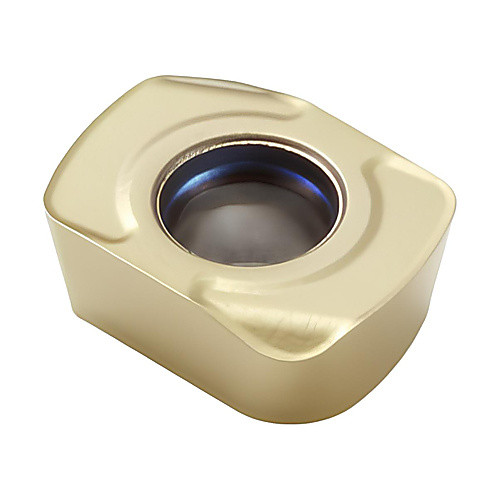

LPHT 060310ER-E05 GRADE F40M INSERT
Milling Insert; LPHT060310ER-E05 F40M F40M × 6.35 mm Width × 3.18 mm Thickness ; Carbide ; TiAlN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.3343″ | Shape | Rectangle |
| Corner Radius (RE) | 1 mm | Insert Style | LPHT |
| Depth of Cut Maximum (APMX) | 0.3343″ | Insert Size | 60310 |
| Insert Width (W1) | 6.35 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | T |
| Insert Thickness (S) | 3.18 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
