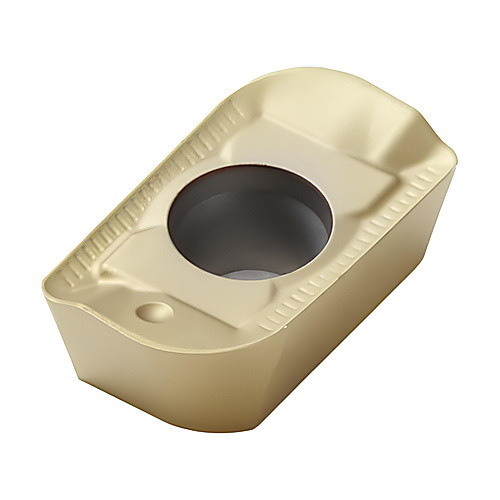

APKX 160430R-ME12 GRADE F40M INSERT
Milling Insert; 16.76 mm Length × 9.44 mm Width × 5.67 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 16.76 mm | Shape | Parallelogram |
| Corner Radius (RE) | 3 mm | Insert Style | APKX |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160430 |
| Insert Width (W1) | 9.44 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | ME12 |
| Insert Thickness (S) | 5.67 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
