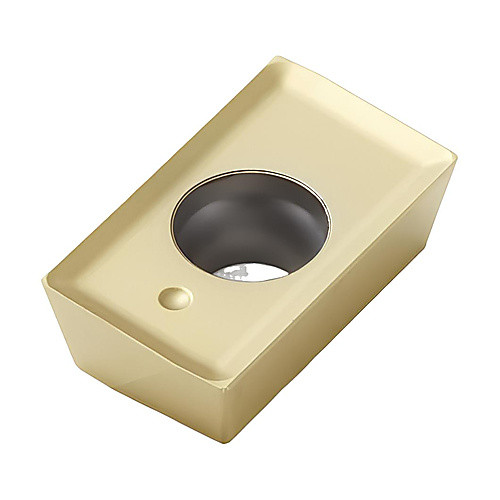

APKT 1604PDTL-M14 GRADE T25M INSERT
Milling Insert; 17 mm Length × 9.52 mm Width × 4.76 mm Thickness ; T25M ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 17 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.4 mm | Insert Style | APKT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 1604 |
| Insert Width (W1) | 9.52 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | T |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.015
