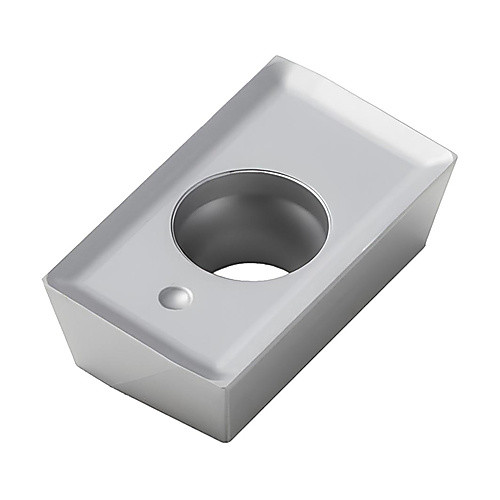

APKT 1604PDL-E12 GRADE HX INSERT
Milling Insert; 16.45 mm Length × 9.52 mm Width × 4.76 mm Thickness ; HX ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Grade | HX |
| Cutting Edge Length (L) | 16.45 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.4 mm | Insert Style | APKT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 1604 |
| Insert Width (W1) | 9.52 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | T |
| Insert Thickness (S) | 4.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.015
