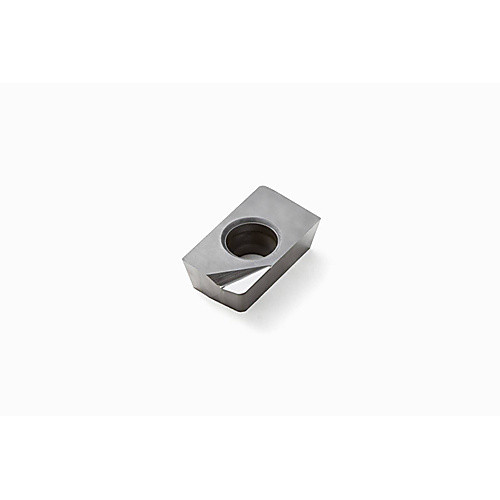

APHT 160408FR-M08 GRADE PCD20 INSERT
Milling Insert; 16.89 mm Length × 9.48 mm Width × 4.86 mm Thickness ; PCD20 ; PCD ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | PCD20 |
| Cutting Edge Length (L) | 16.89 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.8 mm | Insert Style | APHT |
| Depth of Cut Maximum (APMX) | 0.2205″ | Insert Size | 160408 |
| Insert Width (W1) | 9.48 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.373″ | Chip Breaker Type | T |
| Insert Thickness (S) | 4.86 mm | Cutting Edge Material | PCD |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.018
