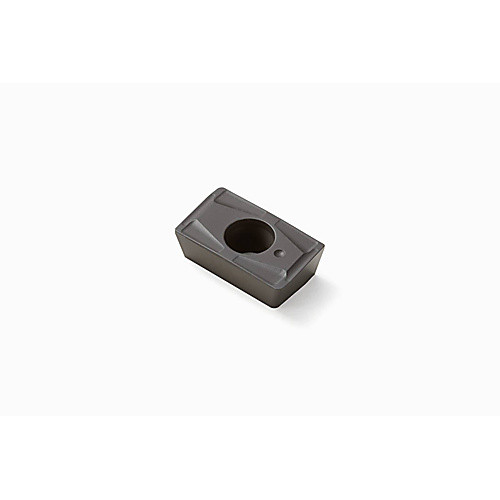

APFT1604PDTL-D15
Milling Insert; APFT1604PDTL-D15 MP1500 MP1500 × 3/8″ Width × 0.195″ Thickness ; Carbide ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | MP1500 |
| Cutting Edge Length (L) | 0.6476″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.031″ | Insert Style | APFT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 1604 |
| Insert Width (W1) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | D15 |
| Insert Thickness (S) | 0.195″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
