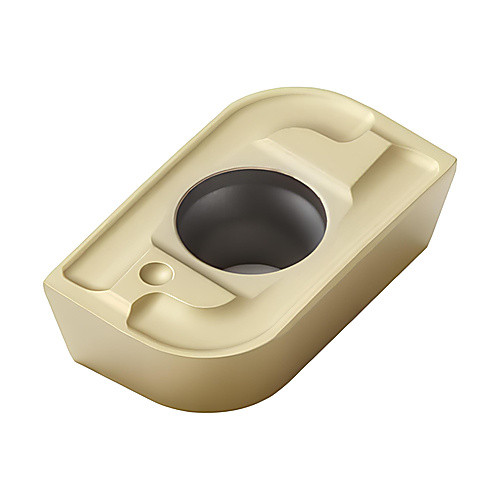

APFT 160440R-M13 GRADE T25M INSERT
Milling Insert; 16.45 mm Length × 9.52 mm Width × 4.95 mm Thickness ; T25M ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 16.45 mm | Shape | Parallelogram |
| Corner Radius (RE) | 4 mm | Insert Style | APFT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160440 |
| Insert Width (W1) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | T |
| Insert Thickness (S) | 4.95 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.015
