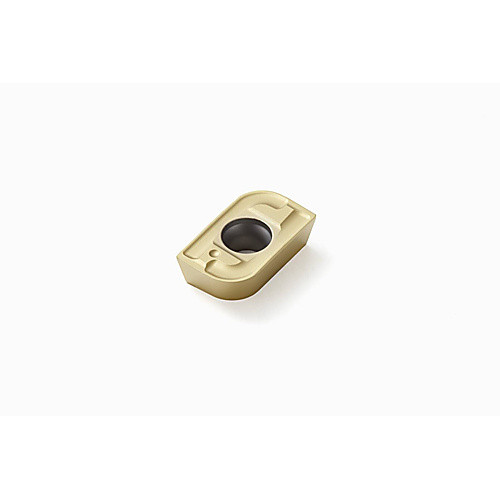

APFT160416R-M13 F40M
Milling Insert; 0.6476″ Length × 3/8″ Width × 0.1945″ Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.6476″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.063″ | Insert Style | APFT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160416 |
| Insert Width (W1) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M13 |
| Insert Thickness (S) | 0.1945″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.015
