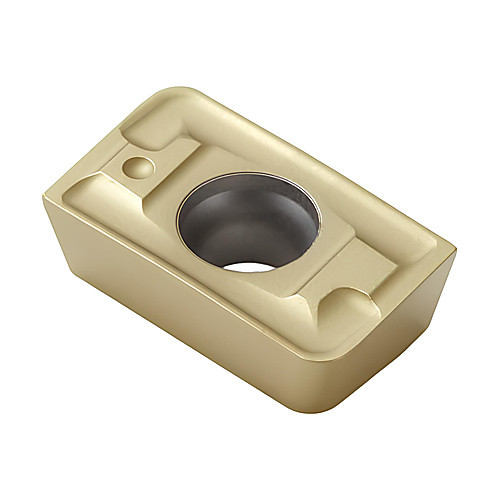

APFT160416L-M13
Milling Insert; APFT160416L-M13 T25M T25M × 3/8″ Width × 0.194″ Thickness ; Carbide ; TiC+TiCN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 0.6476″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.063″ | Insert Style | APFT |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160416 |
| Insert Width (W1) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M13 |
| Insert Thickness (S) | 0.194″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
