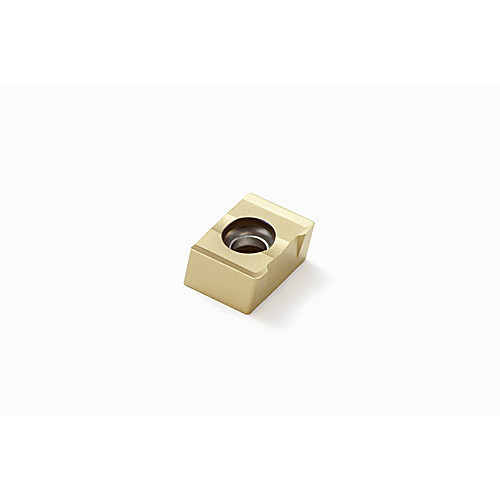

LNKT 080508PPN-E05 GRADE H25 INSERT
Milling Insert; 7.5 mm Length × 8.38 mm Width × 5 mm Thickness ; H25 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H25 |
| Cutting Edge Length (L) | 7.5 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.8 mm | Insert Style | LNKT |
| Depth of Cut Maximum (APMX) | 0.2953″ | Insert Size | 80508 |
| Insert Width (W1) | 8.38 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.2953″ | Chip Breaker Type | T |
| Insert Thickness (S) | 5 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
