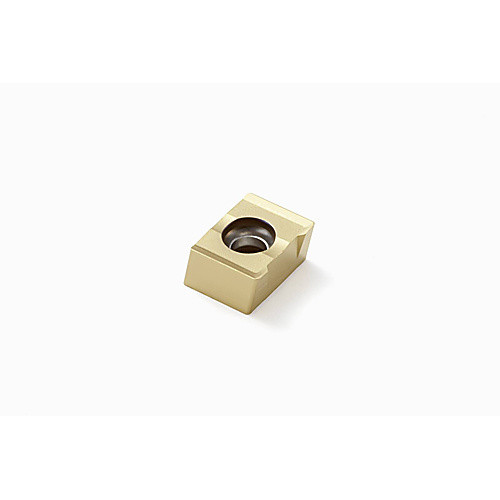

LNKT060504PPN-E05
Milling Insert; LNKT060504PPN-E05 H25 H25 × 0.33″ Width × 0.197″ Thickness ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H25 |
| Cutting Edge Length (L) | 0.3937″ | Shape | Rectangle |
| Corner Radius (RE) | 0.016″ | Insert Style | LNKT |
| Depth of Cut Maximum (APMX) | 0.236″ | Insert Size | 60504 |
| Insert Width (W1) | 0.33″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.2362″ | Chip Breaker Type | E05 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Tool Type | Double sided Inserts |
| Coating | Uncoated | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
