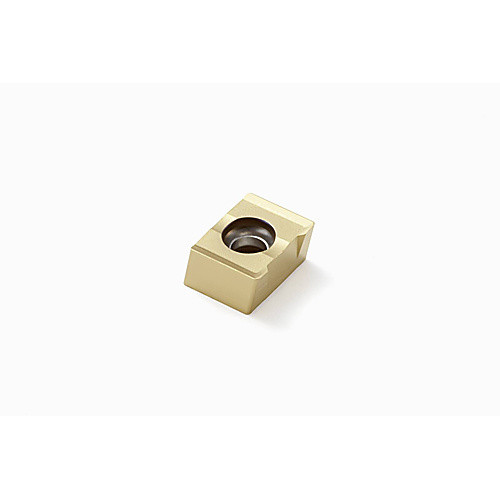

LNKT 050420PPTN4-M06 GRADE F40M INSERT
Milling Insert; 5 mm Length × 6.36 mm Width × 4.7 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 5 mm | Shape | Rectangle |
| Corner Radius (RE) | 2 mm | Insert Style | LNKT |
| Depth of Cut Maximum (APMX) | 0.1969″ | Insert Size | 50420 |
| Insert Width (W1) | 6.36 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.1969″ | Chip Breaker Type | T |
| Insert Thickness (S) | 4.7 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 0 Degrees | Tool Type | Double sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 4 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
