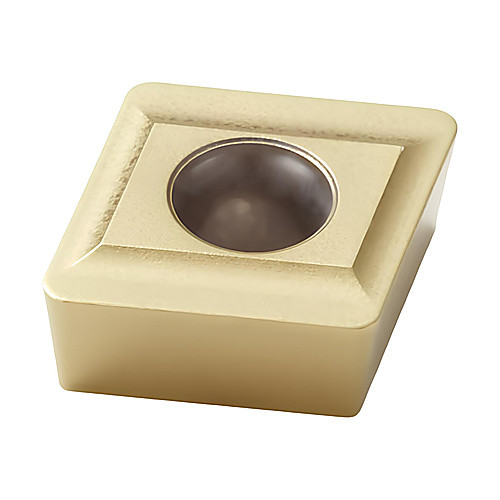

CCMX 09T308T-MD09 GRADE T25M INSERT
Milling Insert; 9.52 mm Length × 3.97 mm Thickness ; T25M ; Carbide ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 9.52 mm | Shape | Diamond |
| Corner Radius (RE) | 0.8 mm | Insert Style | CCMX |
| Depth of Cut Maximum (APMX) | 3/8″ | Insert Size | 09T308 |
| Insert Width (W1) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | MD09 |
| Insert Thickness (S) | 3.97 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 7 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
