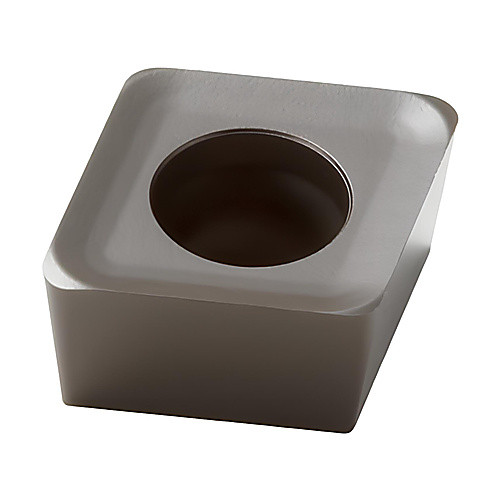

CCMX 08T308-E07 GRADE T350M INSERT
Milling Insert; 8.03 mm Length × 4.4 mm Thickness ; T350M ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T350M |
| Cutting Edge Length (L) | 8.03 mm | Shape | Diamond |
| Corner Radius (RE) | 0.8 mm | Insert Style | CCMX |
| Depth of Cut Maximum (APMX) | 0.3161″ | Insert Size | 08T308 |
| Insert Width (W1) | 0.3161″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 8.03 mm | Chip Breaker Type | E07 |
| Insert Thickness (S) | 4.4 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 7 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
