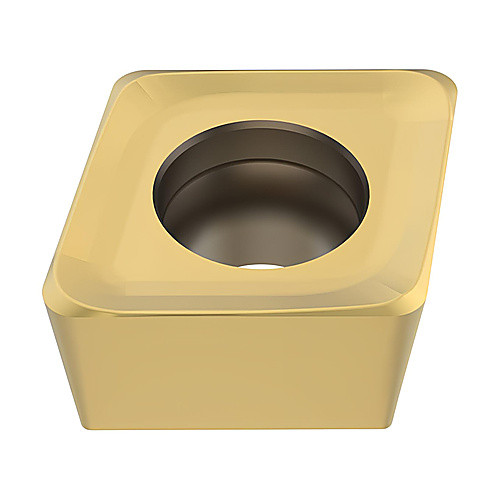

CCMX 060304T-M07 GRADE F40M INSERT
Milling Insert; 6.35 mm Length × 3.5 mm Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 6.35 mm | Shape | Diamond |
| Corner Radius (RE) | 0.4 mm | Insert Style | CCMX |
| Depth of Cut Maximum (APMX) | 1/4″ | Insert Size | 60304 |
| Insert Width (W1) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | M07 |
| Insert Thickness (S) | 3.5 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 7 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.002
