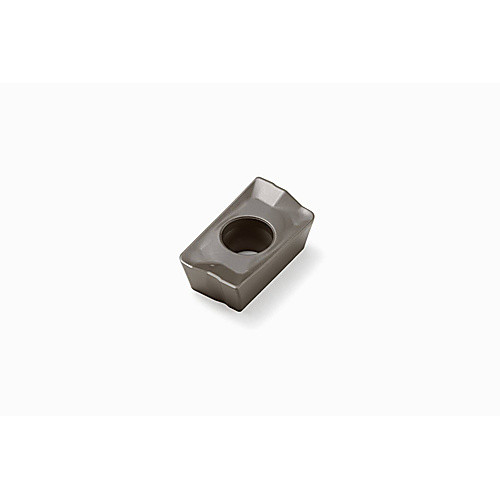

APMX 160408TR-ME11 GRADE MP1500 INSERT
Milling Insert; 17 mm Length × 9.43 mm Width × 5.76 mm Thickness ; MP1500 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | MP1500 |
| Cutting Edge Length (L) | 17 mm | Shape | Parallelogram |
| Corner Radius (RE) | 0.8 mm | Insert Style | APMX |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160408 |
| Insert Width (W1) | 9.43 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | ME11 |
| Insert Thickness (S) | 5.76 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 11 Degrees | Tool Type | Single sided Inserts |
| Coating | | Al2O3 | TiCN | | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
