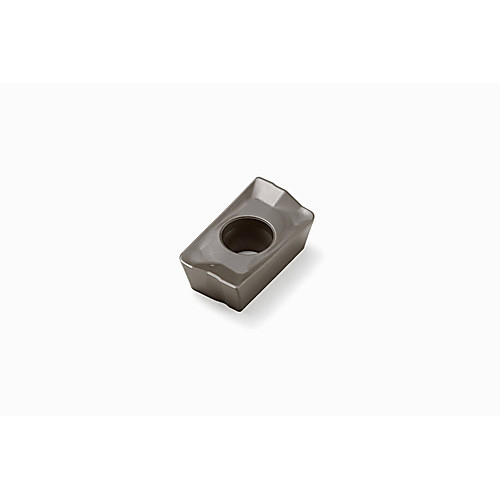

APMX160408TR-M14 F40M
Milling Insert; 0.6693″ Length × 0.3717″ Width × 0.2232″ Thickness ; F40M ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | F40M |
| Cutting Edge Length (L) | 0.6693″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.0315″ | Insert Style | APMX |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160408 |
| Insert Width (W1) | 0.3717″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3717″ | Chip Breaker Type | M14 |
| Insert Thickness (S) | 0.2232″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Single sided Inserts |
| Coating | TiAlN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
