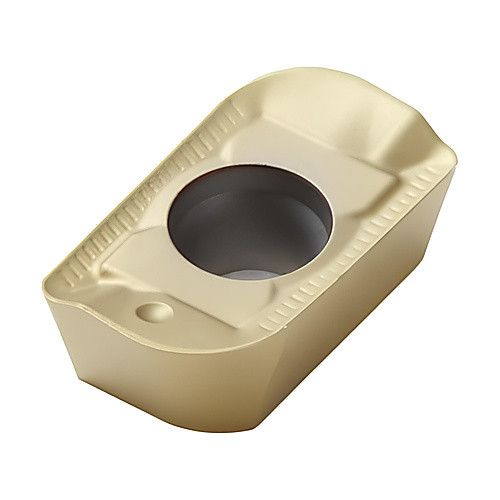

APKX160430R-ME12
Milling Insert; APKX160430R-ME12.110 T25M T25M × 0.372″ Width × 0.223″ Thickness ; Carbide ; TiC+TiCN+TiN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | T25M |
| Cutting Edge Length (L) | 0.6598″ | Shape | Parallelogram |
| Corner Radius (RE) | 0.118″ | Insert Style | APKX |
| Depth of Cut Maximum (APMX) | 0.622″ | Insert Size | 160430 |
| Insert Width (W1) | 0.372″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.3717″ | Chip Breaker Type | ME12 |
| Insert Thickness (S) | 0.223″ | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees | Tool Type | Single sided Inserts |
| Coating | TiCN | Number of Cutting Edges | 2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
