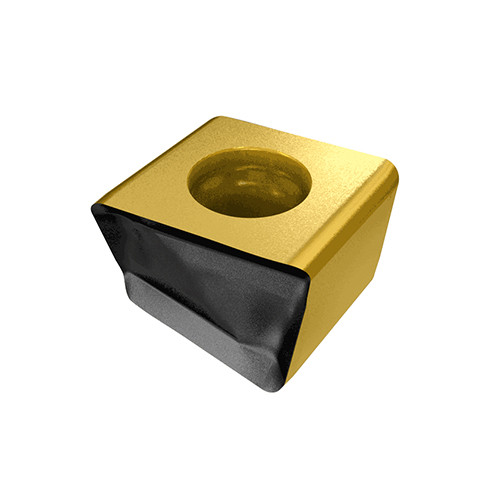

HTP LNMT 0604 ER IC830
Milling Insert; HTP LNMT 0604 ER IC830 IC830 × 0.16″ Width × 0.269″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Facing | Shouldering | Side Plunging | | Cutting Direction (HAND) | Right Hand |

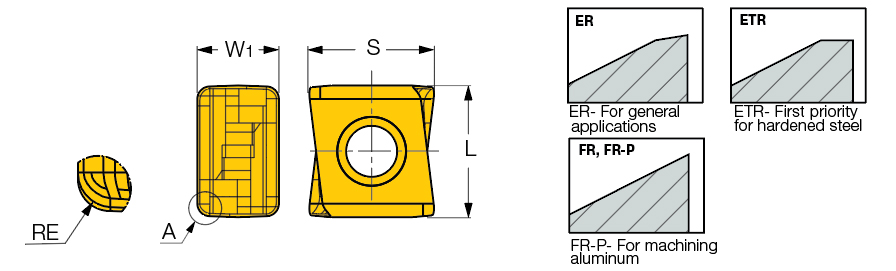

| Insert Length (INSL) | 0.256″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.16″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.269″ | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | Rectangle |
Product Features
| Family Description | TANGPLUNGE Tangentially clamped insert with 4 cutting edgesuused on plungers. The insert orientation on the tool resulte in excellent flatness. | Country of Origin | Israel |
| Remarks | FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel |
Shipping Info
Package Weight
0.005
