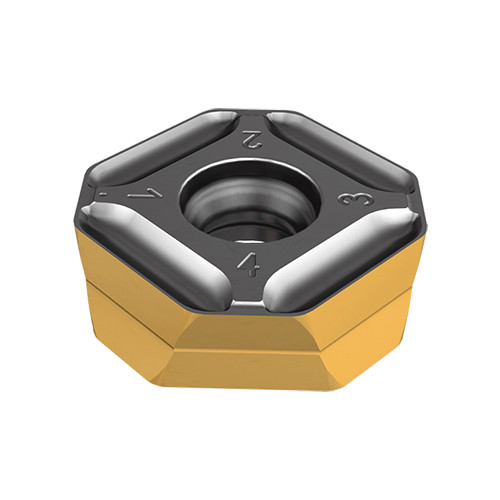

IQ845 SYHU 0503ADN-ML IC830
Milling Insert; IQ845 SYHU0503ADN-ML IC830 × 0.118″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Square |
| Corner Radius (RE) | 0.0315″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.102″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.327″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.118″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.079″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Square inserts with 8 cutting edges. | Country of Origin | Israel |
| Remarks | For chipformer selection and cutting recommendations, see More info |
Shipping Info
Package Weight
0.007
