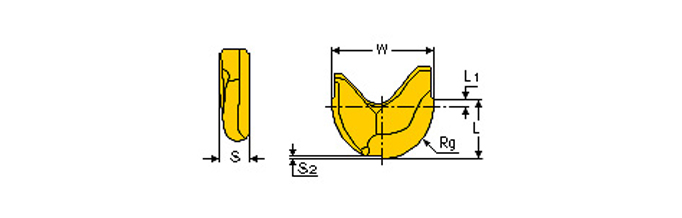

CRD.50QF IC950 INSERT
| Applicable Material | Steel|Cast Iron | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.305″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 0.14″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC950 |
Product Features
| Family Description | Ball nose .5-.75″ diameters, profiling inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
