| Applicable Material | Stainless Steel|Hi-Temp Alloys | Grade | IC5820 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Triangle |
| Cutting Edge Length (L) | 0.657″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.512″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.449″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 0.23″ | Measurement Type | Metric |
| Coating | Al2O3 | Body Material | Carbide |
Product Features

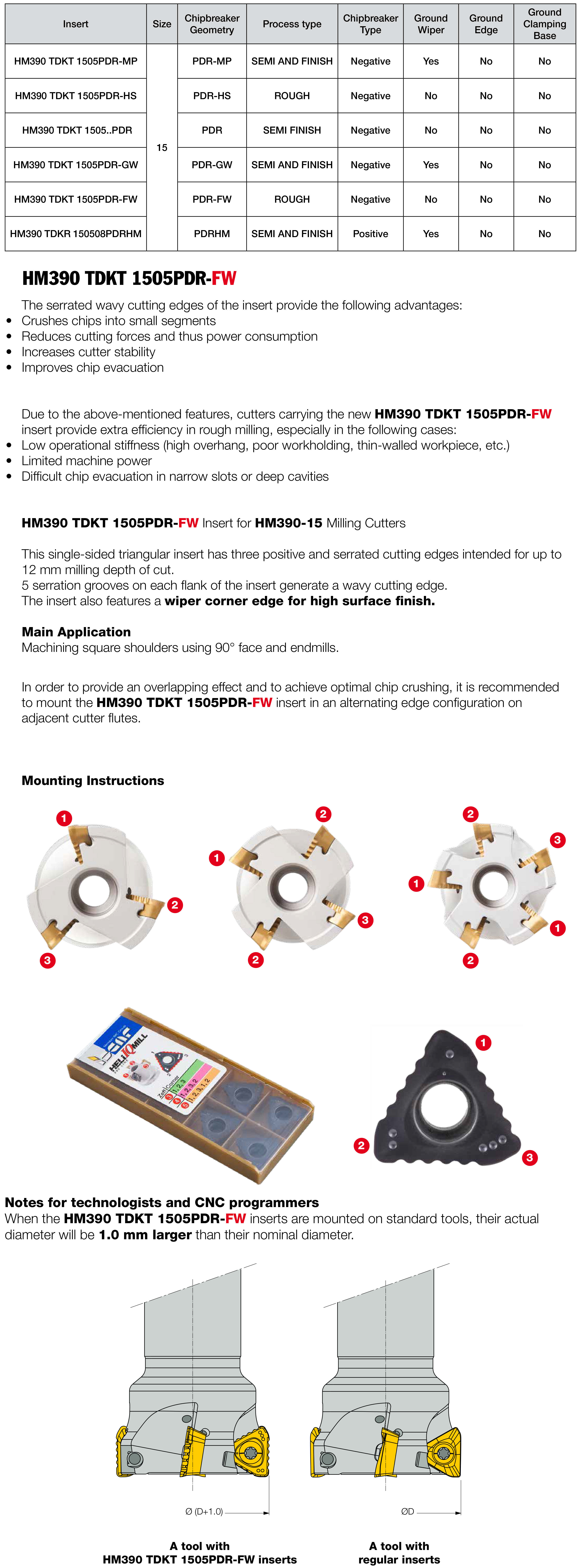

| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | Country of Origin | IL |
| Remarks | For HM390 TDKT 1505PDR-FW insert clamping order instructions, watch the attached video film. |
Shipping Info
Package Weight
.0196
